Boston MBTA
Rapid Transit

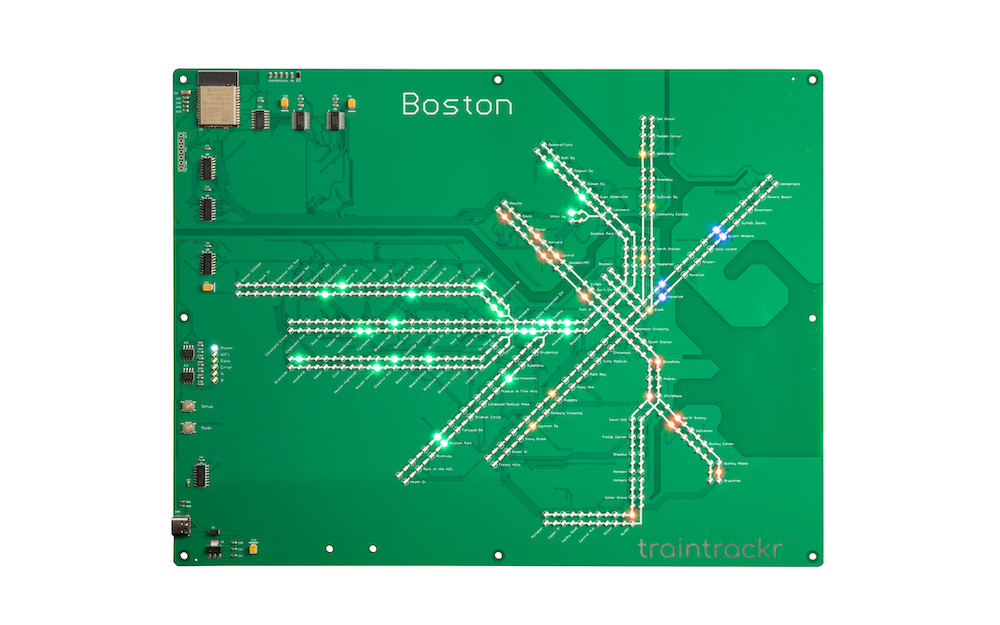

Updated design for 2023 - Now shows Charles River and Boston Harbor in a contrasting layer embedded in the circuit board

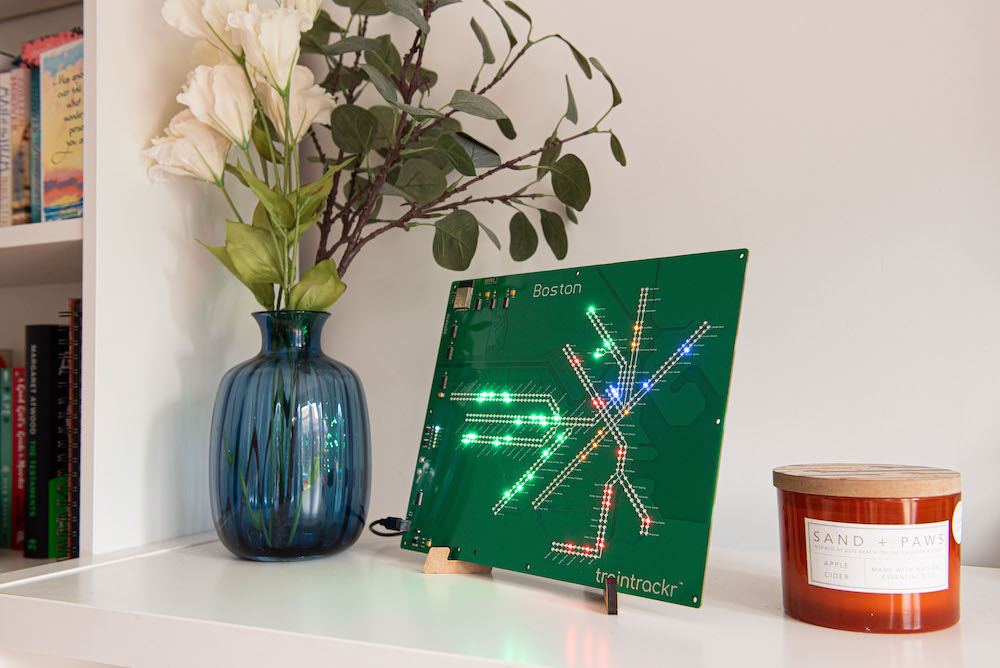

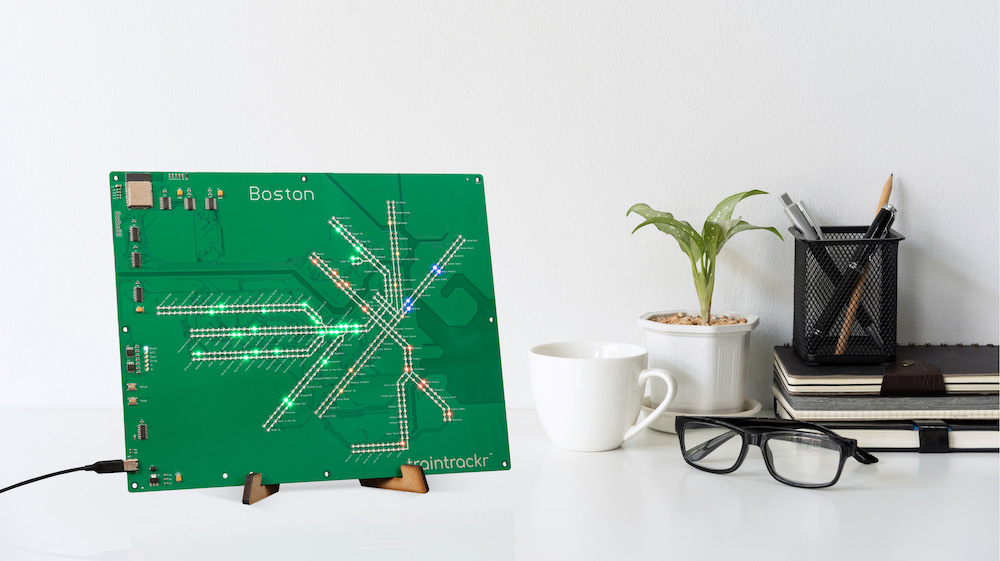

Tracks trains on the MBTA in Boston, showing live locations as each vehicle moves around the network.

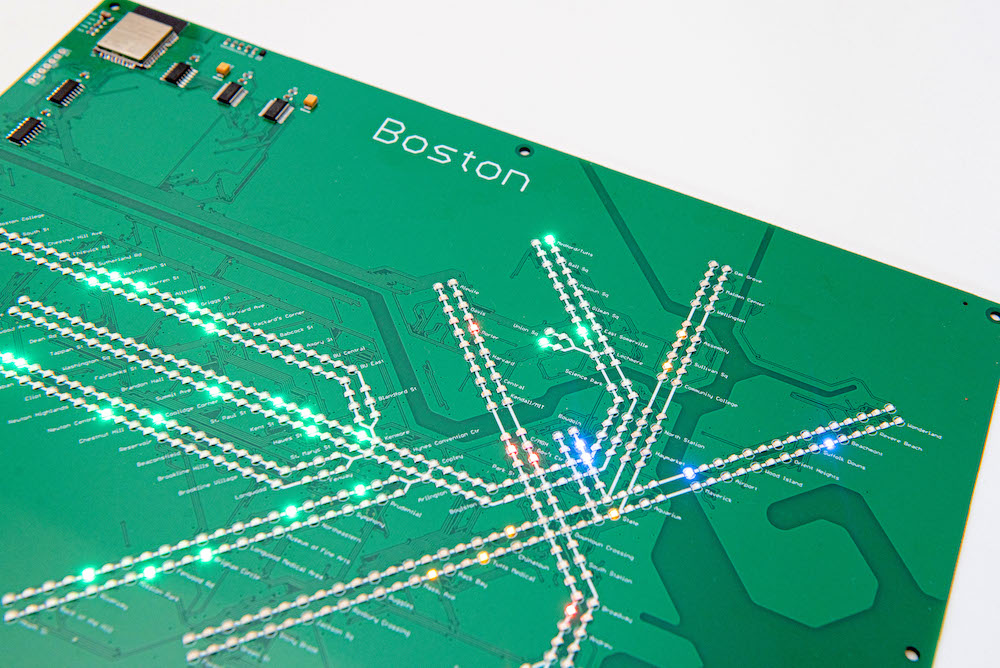

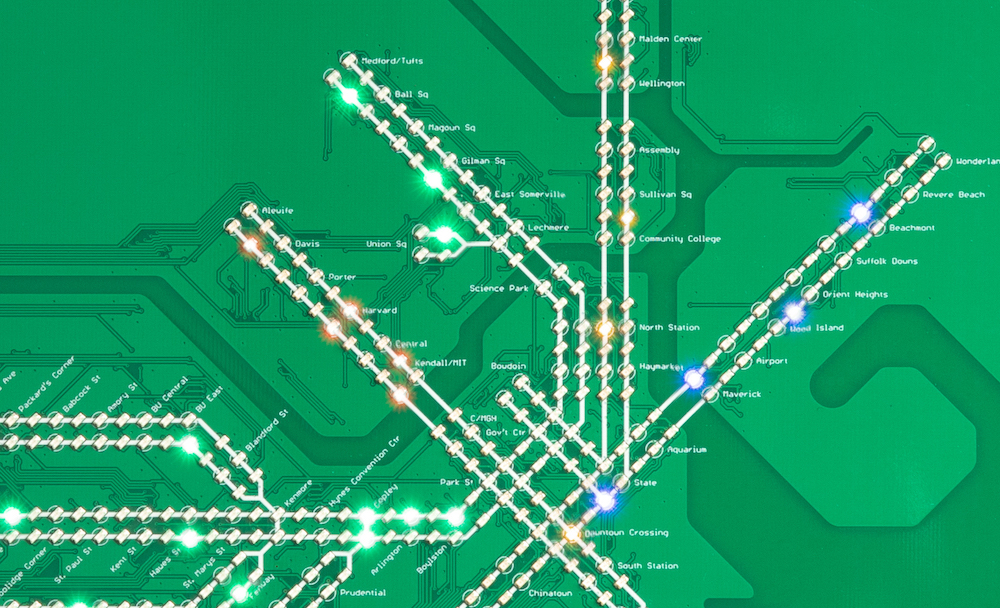

This board shows trains going in both directions to all Red line, Blue line, Orange line and Green line stops
Receives live data over WiFi
LEDs update every second

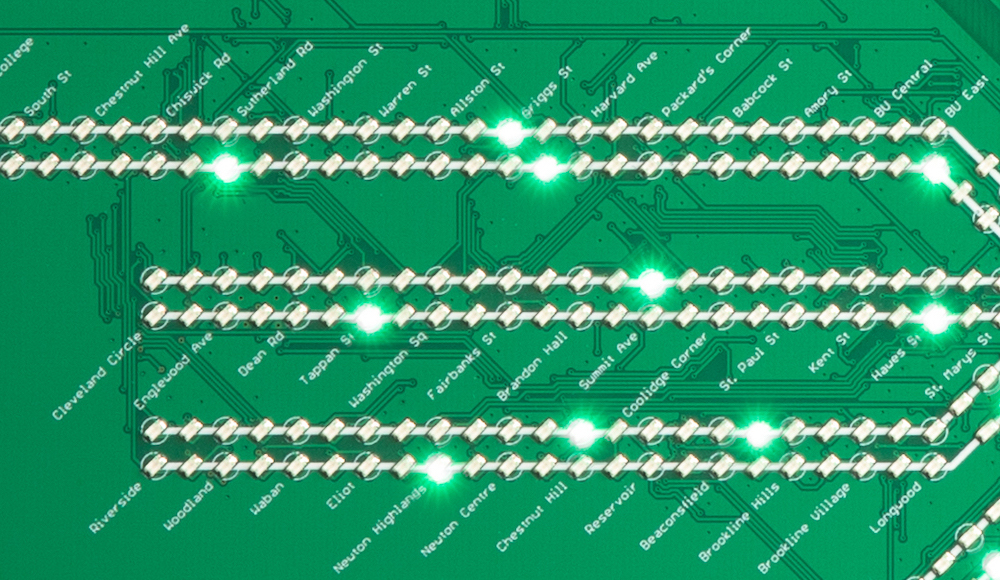

Uses 518 Red, Green, Blue, and Orange LEDs
$199
$179.10
When Using Coupon Code SALE24
In Stock
Ships from the US
Ships to the US
and Canada
Switch to UK
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Looking for shipping to the UK and Europe? Try our UK Site
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 518
- LED Type: 0805 Surface Mount
- LED Size: 2.0mm x 1.25mm
- LED Colour: Red, Green, Blue, and Orange
- Brightness control: 16 Level
- 500mA @ 5V
- Included: Power supply and Cable
- Material: 1.6mm FR-4
- Size: 300mm x 230mm (11.8in x 9.1in)
- Colour: Green

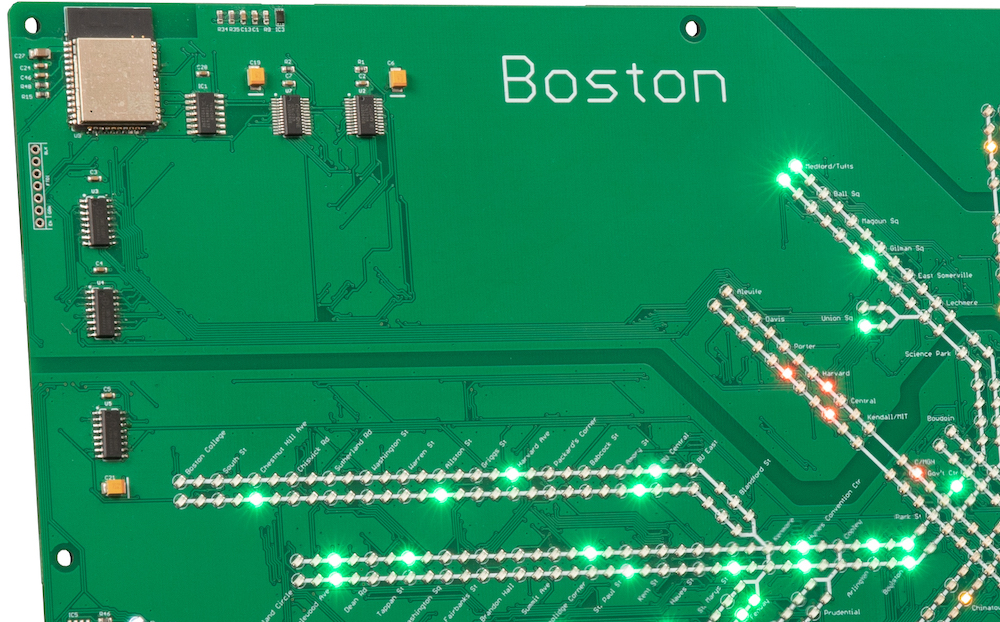

- Microcontroller: ESP32
- LED Driver: ICN2038/ICN2012
- Material: 6mm MDF
- Laser cut ready to assemble

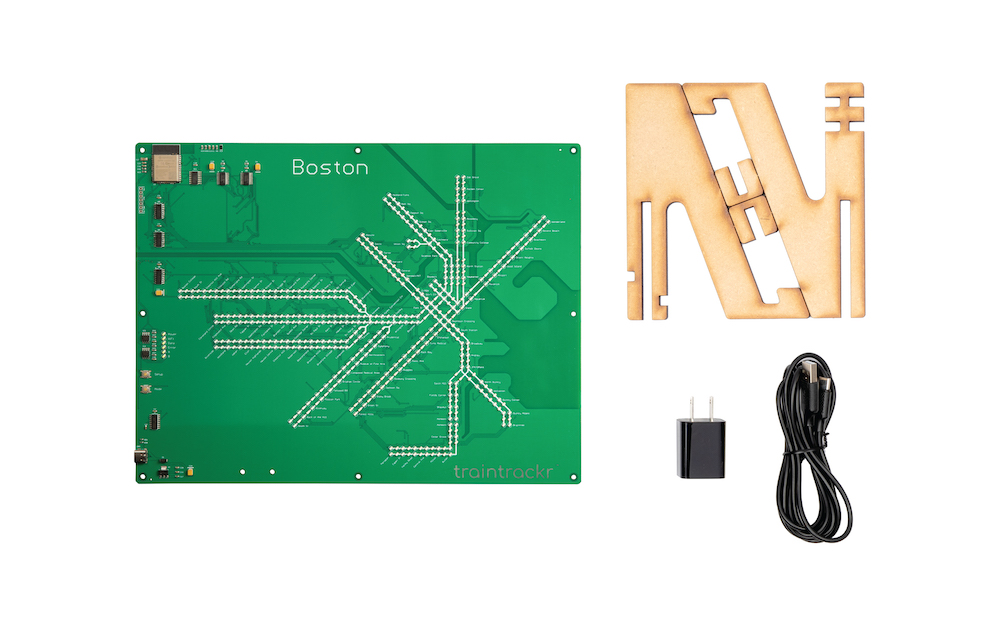

What's in the Box?
Package Contains
- Live Tracker

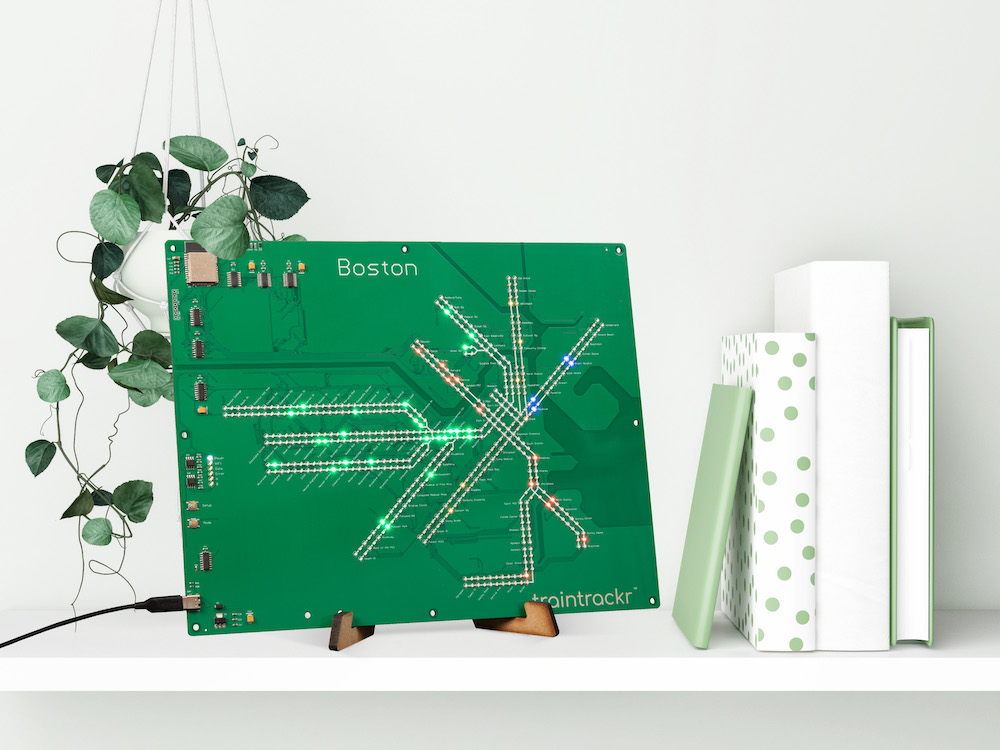

- Wooden Stand
- Power Supply and Cable
- Setup Instructions
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.
I absolutely love this, it's just beautiful.
Reviews
There are currently no reviews to display for this product
