UK Rain
Geographic Map

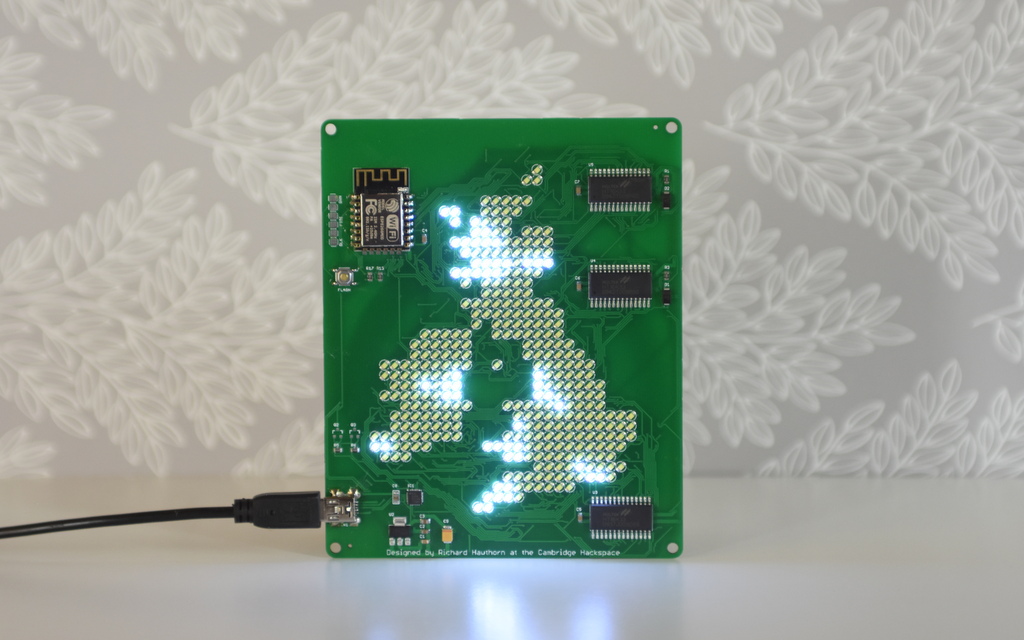

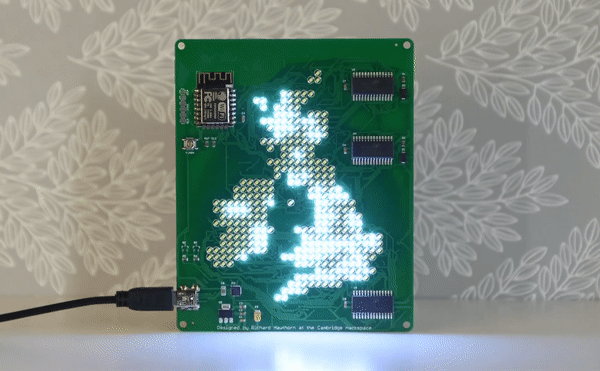

Tracks rain through the UK and Ireland, showing live precipitation (rain and snow) data updated every 5 minutes.
We continually process live radar data on our servers, so you can see how wet it really is out there.
Receives live data over WiFi
LEDs update every 10 minutes
Uses 338 White LEDs
There is an updated version of this product available: View Product
Ships from the US
Ships to the US
and Canada
Switch to UK
Includes Standard
1 Year Warranty
Designed in
London UK, and
Somerville USA
Looking for shipping to the UK and Europe? Try our UK Site
Specifications
Connectivity
- WiFi: 2.4Ghz (IEEE 802.11 b/g/n), WPA/WPA2
- Data: Connects to our server every minute
- Or connect to your own data sources
- LED Count: 338
- LED Type: 0805 Surface Mount
- LED Size: 2.0mm x 1.25mm
- LED Colour: White
- Brightness control: 16 Level
- 500mA @ 5V
- Included: 1.8M USB Cable
- Material: 1.6mm FR-4
- Size: 105mm x 129mm (4.1in x 5.1in)
- Colour: Green
- Microcontroller: ESP8266 (ESP-12E)
- LED Driver: HT16K33
- Material: 6mm MDF
- Laser cut ready to assemble
What's in the Box?
Package Contains
- Live Tracker

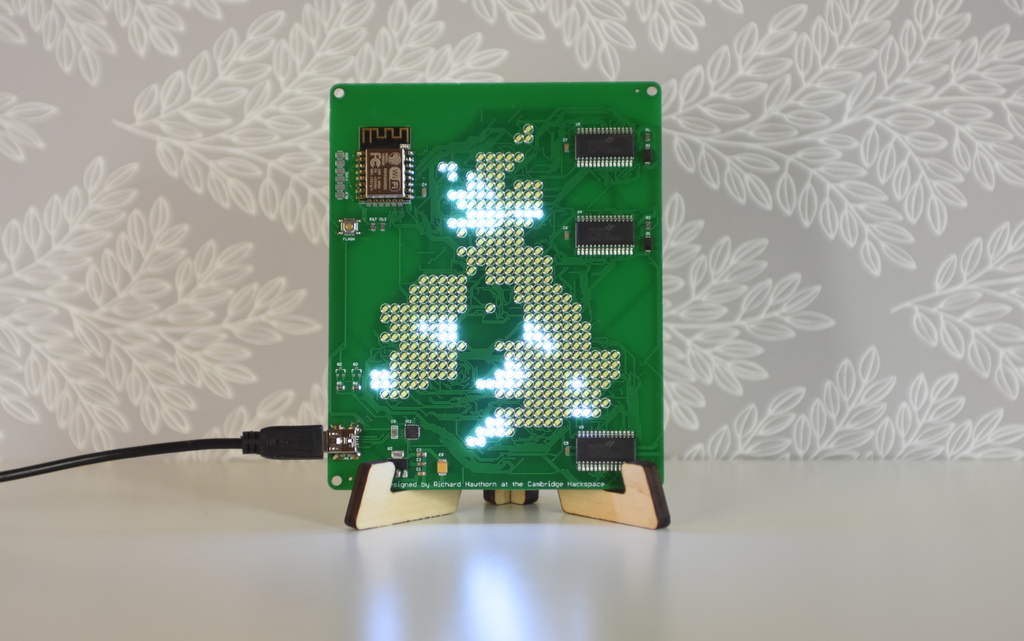

- Wooden Stand
- USB Cable
- Setup Instructions
Note: You will need to plug this into a USB phone charger or computer USB port for power.
Shipping and Warranty
Shipping
- Ships to the US and Canada
- Tracking code supplied once dispatched
- Standard 1 Year
Maker Friendly
Firmware
- Flash the chip via FTDI Pins
- Program using Arduino IDE or similar
- Reprogrammable!
To get your board up and running you will need access to a 2.4Ghz WiFi network. You can find more details on our FAQ Page.
